Triple JAC ™

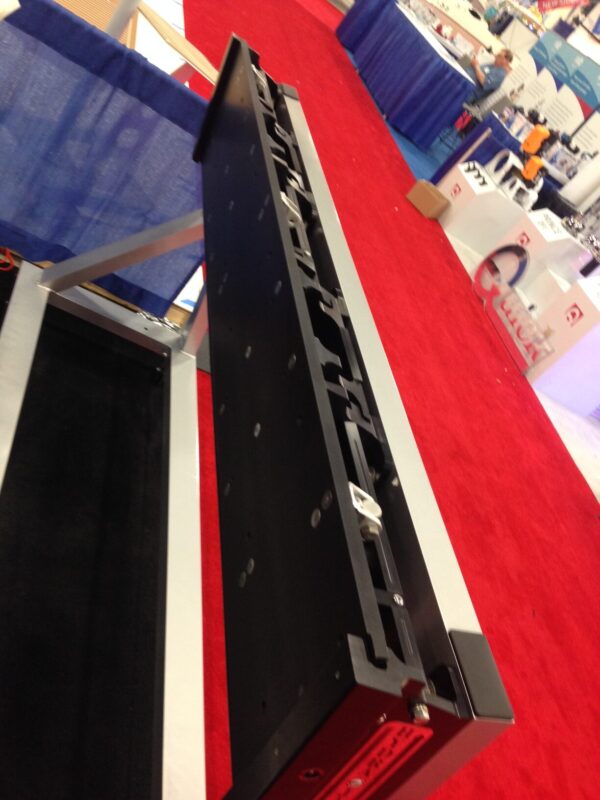

A single jack plate capable of lifting upto 3 x 550 hp engines.

Comes in Bob’s standard Silver finish.

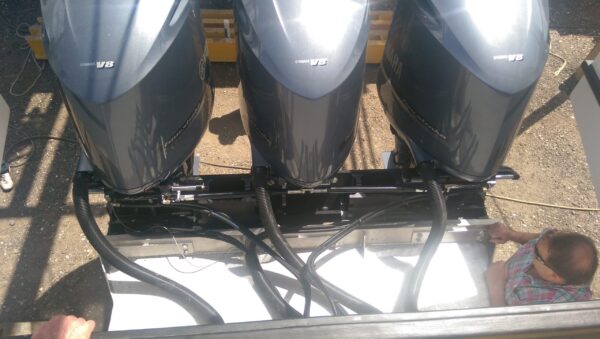

This product brings a simpler rigging option to boaters with triple motors that need a jack plate.  In the past you would mount three jack plates, and have to control them individually, normally requring three switches and three gauges to make sure you kept at same height.

Now via Bob’s Machine Shop’s Triple Jac, you will only have to install one pump inside the boat.  It is a high flow pump and includes a flow divider/combiner, so it keeps the twin cylinders in the jack plate lifting at the same rate.

The triple jack plate has a standard engine “center to center” of 30 inches.


76.625″ Width  (this is 30″ on center, the largest) X  14″ height  (foot print)

6 inches of adjustable travel. 6″ setback

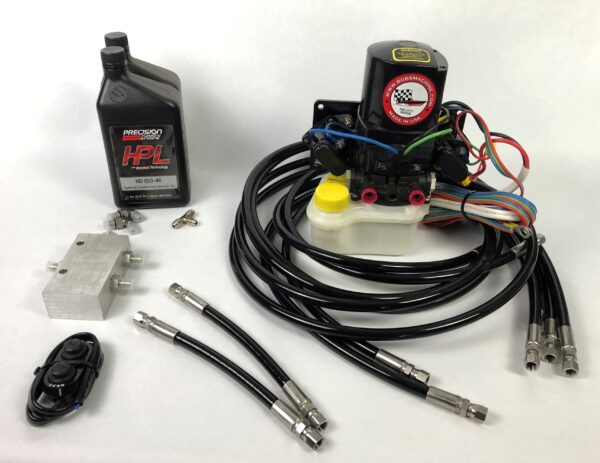

Complete kit, Triple Jac, Pump, Hoses, Wiring Harness, Switch, Gauge.

Additional information

Weight 300 lbs
Dimensions 80 × 24 × 20 in
