Double Jac 2x 550HP


DOUBLE JAC ™ A single jack plate capable of lifting upto 2 x 550 hp engines.

Gauge Color/Bezel: *

Double Jac – Distance on Center of motors: *



A single jack plate capable of lifting up to 2 x 550 hp engines.

Comes in Bob’s standard silver finish.

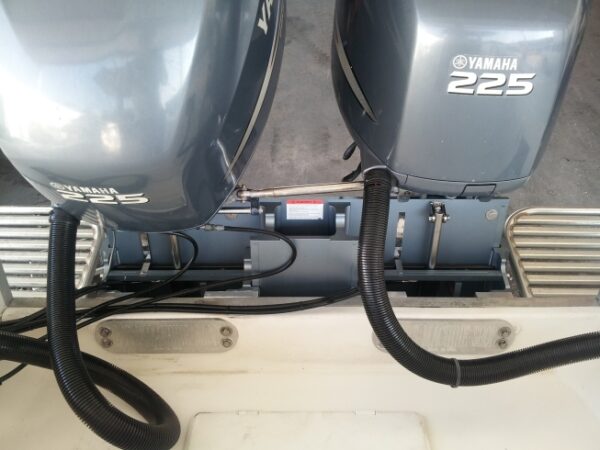

This product brings a simpler rigging option to boaters with twins that need a jack plate.  In the past you would mount two jack plates, and have to control them individually, normally requiring two switches and two gauges to make sure you kept at same height.

Now via Bob’s Machine Shop’s Double Jac, you will only have to install one pump inside the boat.  It is a high flow pump and includes a flow divider/combiner, so it keeps the twin cylinders in the jack plate lifting at the same rate.

The twin jack plate has a standard engine “center to center” of 30 inches.


47.962″ Mounting Width (this is 30″ on center, the largest) X 14″ footprint)

6 inches of adjustable travel.  6″ of setback.

Complete kit, Double Jac, Pump, Hoses, Wiring Harness, Switch, Gauge.

Shipping dimensions & weights

Weight 165 lbs
Dimensions 48 × 24 × 20 in
