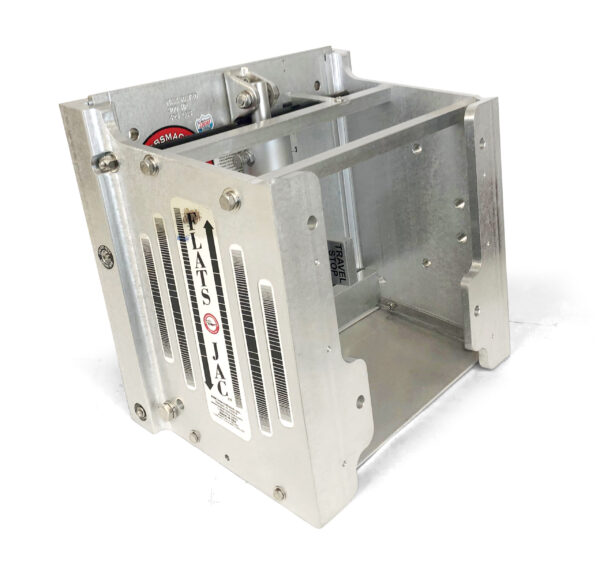

10″ Setback Standard Series Jack Plate 300hp

$1,750.00$2,250.00

Bob’s Machine Shop’s standard series jack plates have a proven track record.  Less weight on the transom, pump protected inside the boat, lifetime structure warranty to original end user, and 5 year warranty on pump!

Description

Our standard series Hydraulic jack plates have been on the market since 1978 and are a proven unit.  They have been redesigned, but the concept has remained.  The lightest weight hydraulic jack plate on the market!  The standard series belief is to keep the least amount of weight on the transom, and by keeping the pump inside the boat, keeps this weight down.  All standard series jack plates have a lifetime warranty on the structure to the original end user, and a 5 year warranty on the hydraulic pump motor.

Jack plates are used to improve an outboard boats speed, holeshot, fuel efficiency, and the boater navigate in shallow waters.  To help find the correct setback for your boat, give us a call! 1-813-247-7040

Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.

Standard series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.

  • Pump inside boat

  • Improves fuel efficiency

  • Large powerful motor that can lift heavy outboards under full power

  • Lifetime warranty on structure, 5 years on pump to original end user

  • Automotive grease nipples for easy lubrication

  • Tension rods

  • Made in USA, in our own factory in Tampa, Florida

  • Rated for 300HP, upto 625 lbs motors (heavier should use Extreme series)

  • Pre drilled for dual side mount Power Pole brackets.

All models are manufactured with aluminum and stainless steel. The Minimum Lift Above Standard Transom is 7-1/2″.(1-½” built in. 6″ rise)

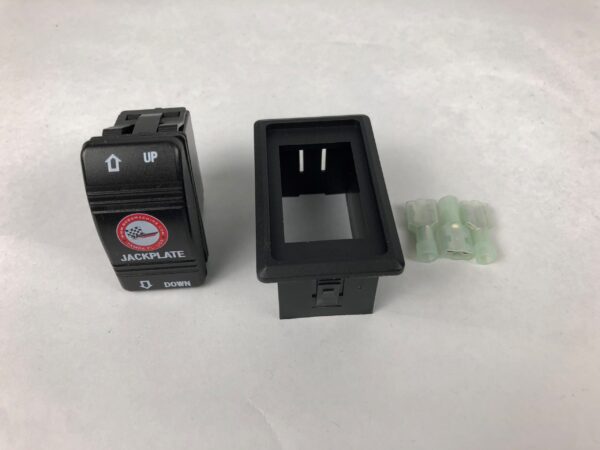

*Price includes complete package (lift, controls, pump, switch, hoses, instructions, oil and limited LIFETIME structural workmanship warranty.
Warranty on the pump (against defects of quality and workmanship) is 60 months. LONGEST IN THE INDUSTRY.    Wire harness and solenoids warranty is 12 months.

Shipping dimensions & weights

Weight 79 lbs
Dimensions 23 × 19 × 17 in
Model?

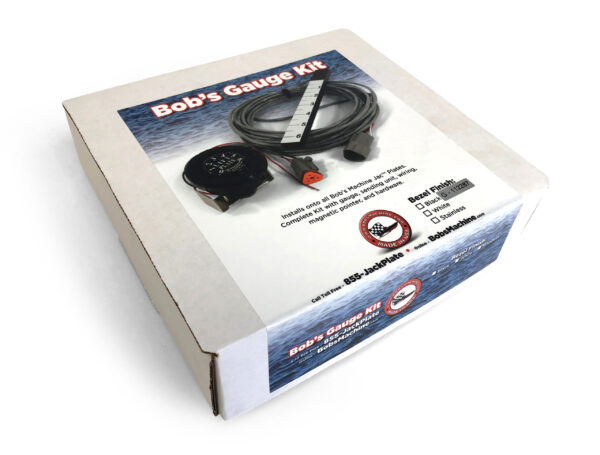

10" Standard Jac Silver, 10" Standard Jac Silver w/Black Gauge, 10" Standard Jac Silver w/White Gauge, 10" Standard Jac Powder coated Gloss Black, 10" Standard Jac Powder coated Gloss Black w/Black Gauge, 10" Standard Jac Powder coated Gloss Black w/White Gauge, 10" Standard Jac Powder coated Gloss White, 10" Standard Jac Powder coated Gloss White w/Black Gauge, 10" Standard Jac Powder coated Gloss White w/White Gauge
